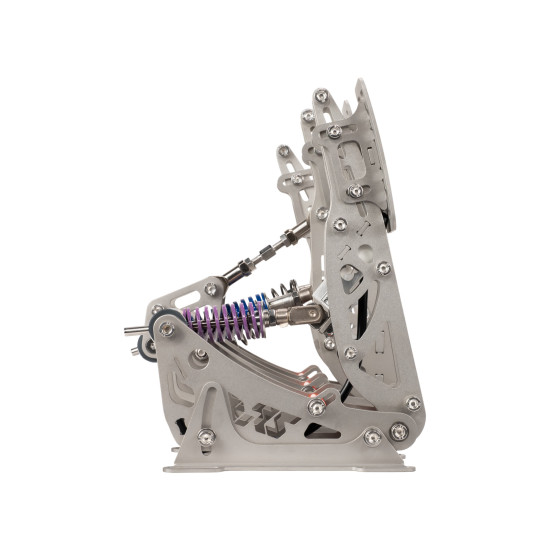

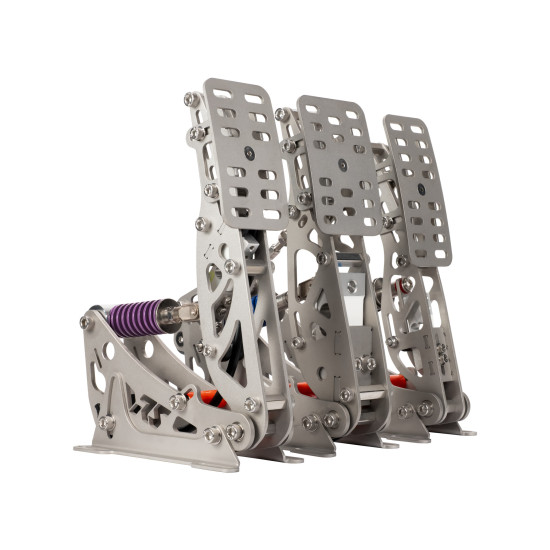

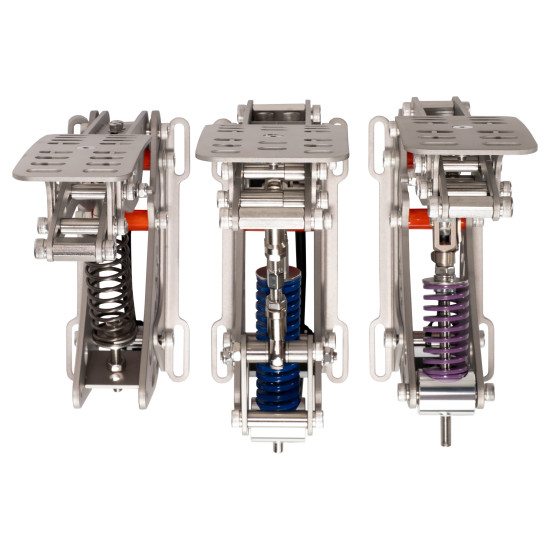

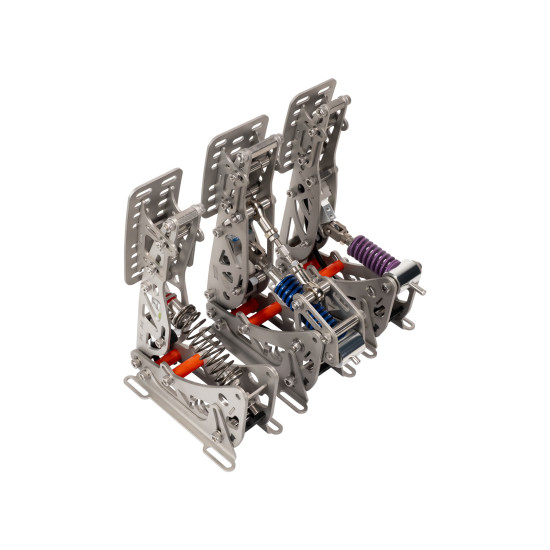

VRS Pro 3 Pedal Set

Achieve unmatched precision with VRS® Pedals! VRS® Pedals set the standard in smoothness, pressure, and build quality. Featuring highly adjustable steel springs with minimal deterioration, they offer consistent performance and precision. Perfect for sim racers seeking the ultimate control over brake and throttle modulation. Experience the difference with our pro-level pedals.

Features

• Highly adjustable - Immediate custom fit
• Realistic brake pressure - Up to 140kg/308lb at the pedal face
• Consistent and precise - Frictionless Throttle
• Steel coil springs - No degradation over time
• Stainless steel body - With a bead-blasted finish

Highly adjustable physical parameters

• 21° Overall tilt
• 30°  Pedal faces tilt
• 20mm Pedal face depth
• 30mm Pedal face height

The Throttle

• Maximum configurable pedal force of 8.4 kg
• Frictionless experience
• Linear response
• Yield strength and resilience against permanent deflection
• EN 10270-1 patented drawn unalloyed music wire coil springs
• 7.5° Min throw
• 20.3°  Max throw
• 21.5 mm Min travel distance
• 58.1 mm Max travel distance
• 188 mm Middle of pedal face height
• 120 mm x 55 mm Pedal face height x width

The Brake

• Adjust the pedal to be soft or firm with up to 140kg of pedal force
• Unique bell-crank style mechanism for a progressive response from a linear spring
• Consistent pedal response
• Quality that won’t degrade over time and won’t suffer from hysteresis
• Adjustable tie-rod connection for an infinite range of pedal force curves
• 50 Cr V4 steel coil springs
• 15° Red spring throw
• 16.2° Blue spring throw
• 46.1 mm Red spring travel distance
• 49.6 mm Blue spring travel distance
• 200 mm Middle of pedal face height
• 100 mm x 70 mm Pedal face height x width

The Clutch

Up to 30kg pedal force with an adjustable and realistic regressive response

• 12.4° Min throw
• 25.4° Max throw
• 37.8 mm Min travel distance
• 77.1 mm Max travel distance
• 50 Cr V4 steel coil springs
• 200 mm Middle of pedal face height
• 100 mm x 70 mm Pedal face height x width

Tech Specs

• Resolution: 16-bit (65536)
• USB Connection: PC
• Adjustable Travel: Yes
• Adjustable Spring Force Level: Yes
• Loadcell sensor: Yes
• Position Adjustment: Yes
• Adjustable Linearity: Yes
• Adjustable Brake Force: 0-140 kg pedal face
• Adjustable Deadzones: Yes
• Throttle (length x width x height): 168mm x 75mm x 246mm
• Brake (length x width x height): 193mm x 83mm x 249mm
• Pedals: Laser-cut and CNC’d stainless steel (304) and aluminum (6061)
• Pedal Control Box: Grounded and shielded, robust and compact aluminium enclosure

What's inside the box?

• Pedals
• Red spring
• Spacers
• Controller
• USB cable
• Certifications
