VRS DFP20 Wheelbase

Professional-grade power that doesn’t compromise. The VRS® DirectForce Pro® DFP20 Wheel Base delivers full 20Nm of raw, unfiltered torque right out of the box. Built with industrial-grade components to satisfy the most demanding sim racers who require maximum feedback strength and precision.

Features overview

• Peak torque 20Nm
• Built using exceptionally durable, high-grade materials
• Industrial-grade MiGE motor
• 22-bit Encoder: Precise, direct & immersive feedback
• Universal compatibility
• VRS® QR Connect Adapter
• Front / Bottom mounting *bottom requires the optional mounting bracket

Industry leading durability

Premium CNC-milled aluminum housing and stainless steel shaft ensure superior heat dissipation and vibration resistance, delivering long-lasting performance for demanding sim racing rigs.

• 3-year warranty
• Money-back guarantee
• Market-leading customer support

Flawless motor

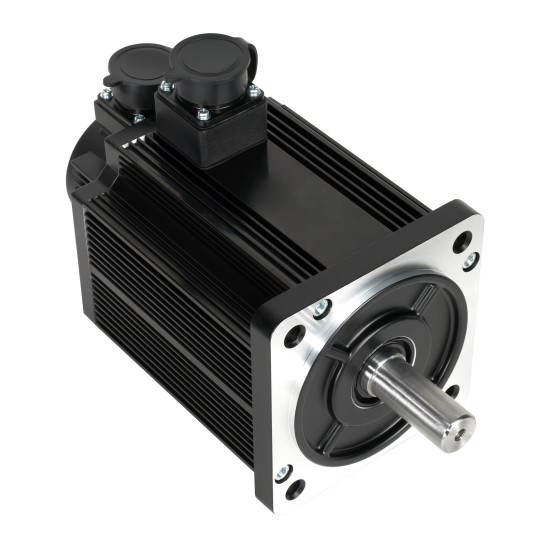

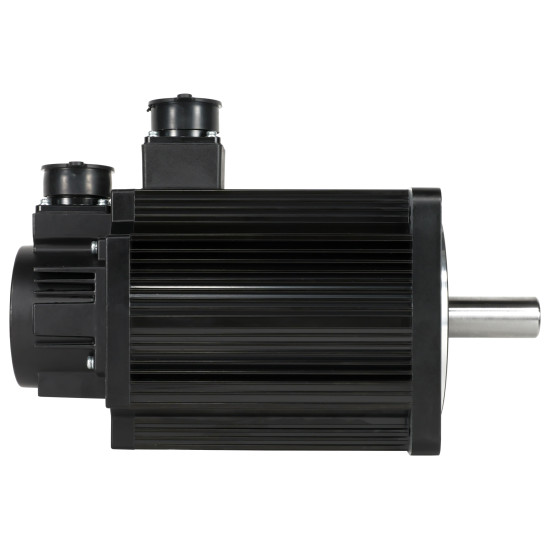

Features the popular MiGE 130ST-M10010 motor, that was originally conceived for far more demanding applications than sim racing.

• Up to 20Nm
• Extremely durable build
• Low internal inertia and friction
• 4-Pole industry leading motor

Precise controller

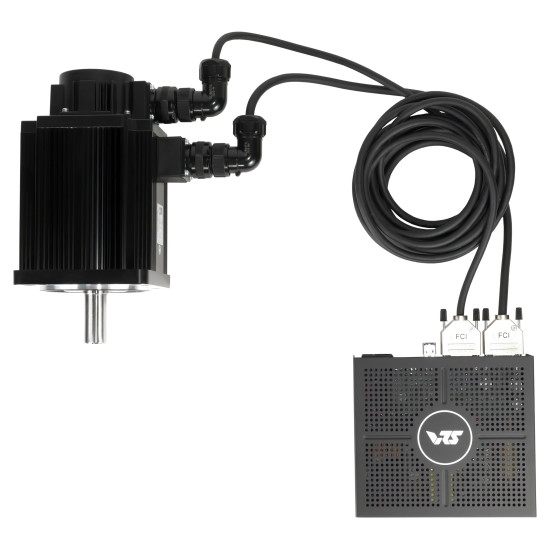

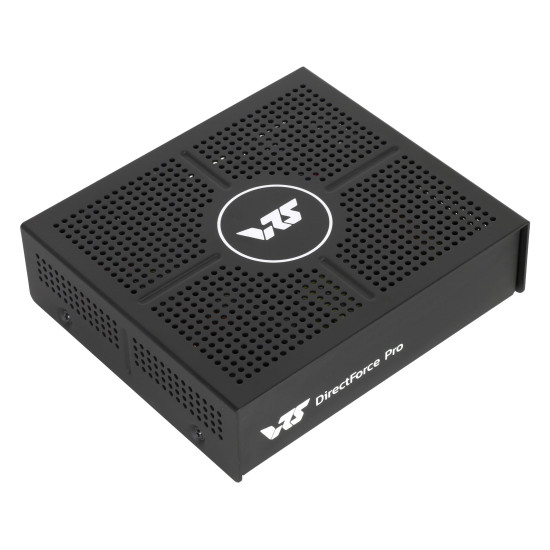

Custom engineered compact steel enclosure, bundled with a 400W fanless PSU and brake resistor.

• 22-bit low noise optical encoder
• 360Hz iRacing support
• Tuned by VRS® coaches

Tech specs

• Platform: PC
• FFB Drive System: Direct Drive
• Motor Type: 4-pole MIGE motor
• Communication Method: USB
• Max Wheel Rotation: Software defined, configurable +/- 90° to +/- 1080°
• Peak Torque: 20 Nm
• Peak Power: 400 W
• Input Voltage : 110-220V AC, internal
• USB Refresh Rate: 1000 Hz
• Encoder Resolution: 4194304 (22-bits)
• Indicator: Yes (2 x LEDs on RJ45 connector)
• App Functions: Supported
• Quick Release: Supported
• Connection Ports: Power DC input, USB B, RJ45 safety stop connector
• Mounting Method: Front mount
• Mounting Holes: 4 x 9 mm holes on the front flange (not threaded - requires a screw and a nut to attach)
• Firmware Update: Applicable
