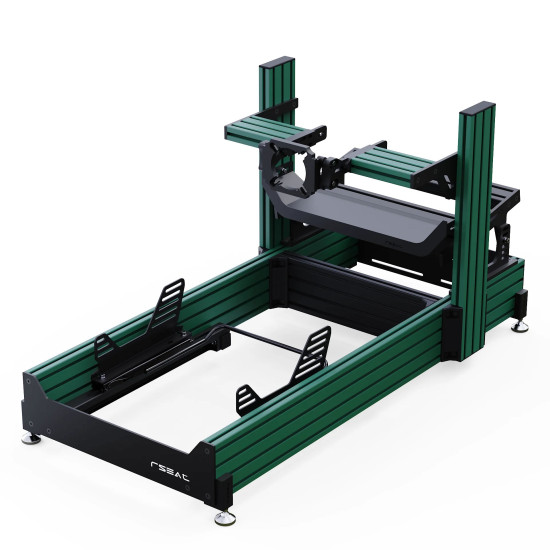

RSeat A1 Pro Formula Green Cockpit

Every component of the RSeat A1 PRO Formula has been carefully designed and crafted with your comfort in mind. In seconds, you can adjust the wheelbase position front-back and tilt. You can also slide the seat front-back.

RSEAT A1 PRO Formula chassis Is top-of- the-line sim racing cockpit designed and built to fulfill the requirements of any sim racer novice or pro. With our 14+ years of experience, we provide a smart-engineered and ready-to-go setup that will serve you for decades. A dedicated wheelbase mount option is available to mount any wheelbase, current or future. The pedals tray is designed to fit any pedals available on the market. For comfort, we include seat sliders (rails) with each chassis. Ultimate stability, rigidity, quality, and looks are guaranteed. The all-new A1 PRO Formula chassis comes 95% pre-assembled from the factory in one big box. Easy 5-10 min assembly required! A service is only available here.

Features

• True Formula seating Position with no compromises.
• The RSEAT A1 PRO Formula offers Ultimate stability and rigidity with Zero-flex experience, designed to work with 35+ Nm wheelbases, Professional Load cells, and hydraulic/electric pedals.
• The chassis features quick adjustment of the wheelbase front-back position via four bolts. To slide the wheelbase forward or back will take no longer than 20 seconds, allowing you to change different steering wheels on the fly without the hassle of moving both the uprights (if there is an on-chassis monitor stand, it will be hard to do).
• Advanced pedal tray and heel rest support. Easy to adjust the position and angle in a matter of seconds. The heel rest is included with the chassis and supports an independent position from the pedal tray so you can set up the perfect position with no limitations.
• A1 PRO Formula chassis features 6063-T6 grade (highest possible) aluminium extrusions. Our profiles are manufactured in the EU with the best quality possible. Wall thickness is 3.3 mm (30% more compared to our competitors). The chassis features a base frame made of 160x40mm extrusions and uprights from 120x40mm extrusions. All profiles have internal threads M8x1.25 mm.
• This top-of-the-line chassis features thick front and back steel plates, making it the most rigid chassis on the market.
• High-quality Ball Spring T-Nuts included. The most easy to install and adjust T-Nuts are provided with each chassis. The self-aligning roll-in T-Nut is a fastening option that loads either from the profile ends or side, which is helpful where the ends are inaccessible.
• The A1 PRO Formula chassis include Seat sliders (rails), Seat Side mount brackets, Feet kit, Heel rest support, all tools and screws to attach and adjust your wheelbase and pedals.
• Our chassis is finished in single or two-color high-quality powder coat paint from TIGER Coatings GmbH & Co. KG Austria.
• Three Wheelbase mounting options available. Please check the supported wheelbase below.
• NEW! All A1 PRO Formula chassis come pre-assembled from the factory at 95%. The ease of assembly is the number one priority for RSEAT. Easy 5-10 min assembly required.
• Ultra durable and stable chassis with zero-flex under maximum load.
• All-way adjustable chassis, including wheelbase, pedals, seat, and attachments. Seat slide front-back with Sliders/rails (included).
• Modular Design. Each module is completely independent. You can upgrade with features at any time (all accessories are directly bolted onto the A1 PRO GT Chassis).
• D-BOX G5 Haptic system ready.
• User height from 127cm (4’2″) up to 210cm+ (6’10″+)
• User weight: NO Limit.
• Footprint Dimensions: L x W 1380mm x 700mm (54.3” x 27.5”)
• All tools and screws to attach your wheelbase, pedals are provided.
• 5-year Warranty
• Made in the EU

---

Supported Pedals

RSEAT A1 PRO Formula chassis Is designed to work with your existing or future gear. Mount any pedals as a direct bolt-on. We provide all tools and fasteners to attach and adjust the angle/position of your pedals. L-brackets for pedals with bottom mount support such as the Fanatec pedals are provided.

• MOZA CRP, SRP Lite, SR-P Pedals
• Asetek Forte S Series 2 Pedals, Asetek Forte® Sim Racing 2 Pedals
• Asetek Invicta Clutch System, Asetek Invicta S Series 2 pedals
• Asetek Invicta Sim Racing Pedals
• Simucube ActivePedal
• Heusinkveld Sim Pedals Pro, Sprint, Ultimate, Ultimate +
• Meca Cup Pedals
• Simagic P1000, P2000 Pedals
• Racewerk S1 PRO Hydraulic Sim Racing Pedals
• Augury Pedals 121
• Simworx PRO GT V3.1 LC PEDAL SET
• VRS DirectForce Pro Throttle, Brake, Clutch Pedals
• Asetek SimSports Forte™, Invicta™ pedals
• BJ STEEL GT/F1 HYDRAULIC Pro Pedals
• Venym Pedals
• Thrustmaster T-LCM, T3PA, all other models
• Fanatec ClubSport Pedals V1/V2/V3, V3 inverted
• Fanatec CSL Elite Pedals
• Fanatec CSL Elite Pedals V2
• Fanatec CSL Pedals LC
• Fanatec CSL Pedals
• Logitech Pro racing Pedals, all other models.

And many more compatible (please check with our support staff for specific pedal compatibility that is not listed above)

Supported Wheelbases

All three advanced wheelbase mounting options feature easy forward-backward and tilt adjustment in seconds. Fanatec side mount support provides compatibility for DD1, DD1 QR2, and DD2 wheelbases that are based on M8 bolt mounting as well as 6mm bolt patterns for the new smaller side mount wheelbases such as ClubSport DD, DD+, CSL DD QR2, Gran Turismo DD Pro.

Bottom Mount Wheelbase Support

• MOZA R5, R9, R12, R16, R21
• Fanatec Clubsport wheel V1/2/2.5
• Fanatec CSL, CSL-DD, CSW
• Fanatec DD1, DD1 QR2, DD2, GT-DD PRO
• Asetek Forte 18 nm Direct Drive, Invicta 27 nm Direct Drive
• M10 Simagic Wheel Base
• AccuForce V1
• AccuForce Pro V2
• Logitech PRO DD11 Base, Pro Racing wheel Direct Drive, G25, G27, G29, G920/G923
• Thrustmaster All wheelbase

Fanatec Side Mount Wheelbase Support

• Fanatec Podium Wheel Base DD1
• Fanatec Podium Wheel Base DD1 QR2
• Fanatec Podium Wheel Base DD2
• Fanatec ClubSport DD
• Fanatec ClubSport DD+
• Fanatec CSL DD QR2 (8Nm & 5 Nm)
• Fanatec Gran Turismo® DD Pro Wheel Base (8Nm & 5 Nm)
• Fanatec Gran Turismo® DD Extreme
• M10 Simagic Wheel Base

Front Mount Wheelbase Support

• SimuCube 2 Sport, Pro, Ultimate
• Bodnar 50 series
• AccuForce Pro V2 Steering System
• Simagic Alpha, Alpha Mini, Ultimate
• MiGe 130ST (small, big)
• Other MiGE Motor-type wheelbases
• Lenze MCS12 series
• VRS DirectForce Pro

RSEAT Formula Seat

• Fit Users up to 44-inch Waist (pants Size). We also offer Sparco GP seat.
• L up to XXL in size.
• Seat cushion Padding (seating area) is 2 inches (50 mm) Thick, best for long race sessions and comfort.
• Composite shell minimum thickness 6 mm (0.24 inch).
• Seat is finished in high wear-resistant, breathing suede fabric.
• Weight 8 kg (17.6 lbs )

What is Included?

• Include Seat sliders.
• Include Feet Kit (Set of 4 Swivel Adjustable Leveling Feet and mounting brackets).
• Include Seat-side Mounting Brackets
• Include Advanced Pedals tray
• Include Formula Pedals heel resting support
• Include Fasteners for assembly
• Include fasteners for wheelbase and pedal mounting
• Include Detailed Assembly and setup instructions
• Include RSEAT Formula seat
