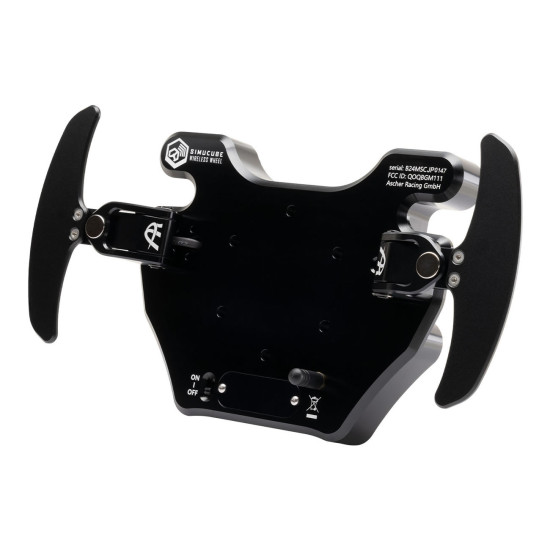

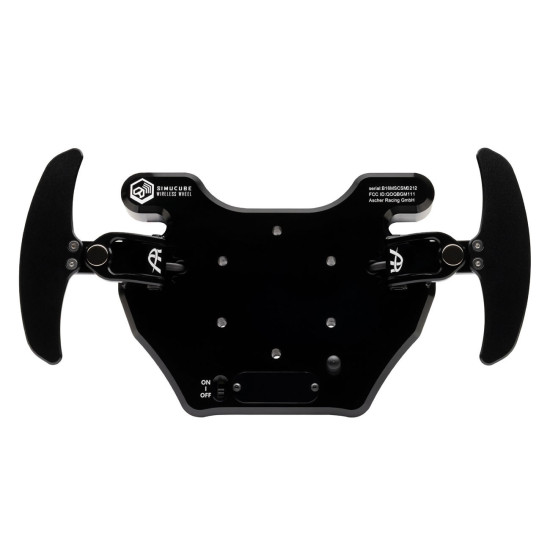

Ascher Racing B24
More features and more control - with the new Ascher Racing button plates B24L-SC and B24M-SC you are straight in the race. As you would expect from Ascher Racing, you can also use our new Simucube-Wireless-Wheel-compatible button plates in original sports steering wheels.
- Simucube Wireless Wheel™
- Compatible with many different steering wheel rims
- 8x push buttons with haptic feedback
- 2x multifunctional 7-way joysticks
- Magnetic paddle shifters
- Stickers for various common button assignments
Engineered to Win
The entire case of the Ascher Racing B24L SC and B24M SC are manufactured from milled aluminum, and we assemble them with high quality components. Inserted in a sports steering wheel, not only you have the impression of holding a steering wheel of an original race car in your hands.
ENHANCED FUNCTIONALITY
Both button plates B24L SC and B24M SC feature an extended functionality with 24 total inputs (8x pushbuttons, 2x 7-way joysticks with pushbutton functionality as well as 2x pushbuttons enclosed with button guards). As usual with all Ascher Racing wheels, you can assign the functions of your racing simulation to all buttons, switches and knobs freely by yourself. Of course, the shift paddles can also be configured.
Functional high-tech: the paddles
We mill the shift paddles for our Ascher Racing B24L SC and B24M SC button plates from a high-quality aluminum alloy. You can customize the shift sensitivity of the paddles with different magnets and spacers. No wonder that we also supply our Ascher Racing Paddles directly to various motorsport teams.
Direct communication. Without lags.
You don't need any cabling for the Ascher Racing B24L SC and B24M SC button plates. The lag-free data transfer is done directly between the SimuCube2 Wheel Base and our button plates. If you still drive with a SimuCube1 Wheel Base you can upgrade your old Wheel Base with an optionally available receiver. Our battery used in the button plate only needs to be replaced after two to three years.
SC WIRELESS WHEEL - COMPATIBLE WITH YOUR SIMUCUBE BASE
You can mount the wireless Ascher Racing button plates B24L SC and B24M SC to your Simucube 2 Wheelbase without an adapter. If you are still using a Simucube1 or a Simucube1 compatible Wheel Base, you can connect the Ascher Racing B24L SC and B24M SC button plates via a snap-off hub or a quick-release adapter. The mounting hole circle for the Ascher Racing B24L SC and B24M SC button plates is 6 x 70 mm.
- Simucube 2 Ultimate
- Simucube 2 Pro
- Simucube 2 Sport
- Simucube 1 (OSW, Mige)
- Any wheelbase + Simucube Link Hub
COMPATIBLE STEERING WHEELS B24L-SC
Momo
- Competition Evo (⌀ 320 mm)
- JET (⌀ 350 mm)
- Mod 30 (⌀ 320 mm)
- Mod 31 (⌀ 320 mm)
- Prototipo 320 (⌀ 320 mm)
- Team 30 (⌀ 300 mm)
- Top Power D30 (⌀ 300 mm)
- Tuner 320 (⌀ 320 mm)
OMP
- Asso (⌀ 350 mm)
- Kubic (⌀ 310 mm)
- Corsica Superleggero (⌀ 350 mm)
- Superquadro (⌀ 330 mm)
- Superturismo (⌀ 320 mm)
- Velocita (⌀ 350 mm)
Sparco
- L999 (⌀ 330 mm)
- Lap 5 (⌀ 350 mm)
- Mugello (⌀ 330 mm)
- P300 (⌀ 300 mm)
- R353 (⌀ 330 mm)
- R375 (⌀ 350 mm)
Sabelt
- Sabelt SW-733 (⌀ 330 mm)
- Sabelt SW1-R (⌀ 295 mm)
Sportline
- Competition (⌀ 300 mm)
- Imola (⌀ 330 mm)
- Racing 32P (⌀ 320 mm)
Other
- Fanatec GT (⌀ 330 mm)
- Fanatec Podium R300 (⌀ 300 mm)
- Motamec D Shape (⌀ 320 mm)
- MPI GT13 (⌀ 324 mm)
- Porsche 911 GT3 Cup (⌀ 320 mm)
- QSP 300 (⌀ 300 mm)
- QSP 350 (⌀ 350 mm)
- RMD 320 (⌀ 320 mm)
- Turn R20 (⌀ 297 mm)
COMPATIBLE STEERING WHEELS B24M-SC
Momo
- Mod 69 (⌀ 350 mm)
- Mod 78 (⌀ 320 mm)
- Montecarlo (⌀ 320 mm)
OMP
- 320 S (⌀ 320 mm)
- Racing GP (⌀ 330 mm)
- Targa (⌀ 330 mm)
- Trecento (⌀ 300 mm)
Sparco
- L360 (⌀ 330 mm)
- R323 (⌀ 330 mm)
- R383 (⌀ 330 mm)
- Ring (⌀ 330 mm)
Sabelt
- Sabelt SW-633 (⌀ 330 mm)
Other
- MPI Mazda MX-5 Cup (⌀ 324 mm)
- MPI F2-13 (⌀ 324 mm)
- Motamec Race Rally Flat 320 (⌀ 320 mm)
- R-Tech 300 Flat (⌀ 300 mm)
PUSH BUTTONS
The push buttons have a tactile function, which always give you noticeable feedback with every push.
PROTECTIVE BUTTONGUARDS
To protect you from operating errors in the middle of your race, some of the buttons are equipped with button guards. This prevents you from accidentally switching to the menu or breaking your record lap.
7-WAY JOYSTICKS
By request of the community, we have replaced the proven rotary controls on the Ascher Racing B24L SC and B24M SC button plates with 7-way joysticks (combining up/down/left/right navigation with an increase/decrease rotary action and push-to-confirm button press) - they work extremely precisely.
STICKER
Your Ascher Racing B24L SC and B24M SC button plates come with a wide range of mounting accessories and various label stickers.
GENERAL INFORMATION
- Button plate in two different shapes for optimized compatibility
- 6 x 70 mm bolt pattern
- M5 x 35/40 mm screws, nuts and washers to mount Q1R included
- Quick Release and wheel rim not included
- Mass: 700 g
- Not suitable for heavily dished or very large (diameter >360mm ) steering wheel rims
TECHNICAL DATA
Difference between M and L models:
- Mainly the compatibility of steering wheel rims:
- M model has buttons moved upwards for rims with a horizontal shaped center
- L model has buttons moved downwards for rims with a curved shaped center
- Please refer to compatibility list for matching steering wheel rims or ask our sales team for further information
Simucube Wireless Key Features:
- Wireless connection to all Simucube 2 (SC2) bases and Simucube Link Hub
- Simucube 1 (SC1) requires an additional receiver module
- Low latency connection
- Hot-swappable wheels in-game without input reconfiguration
- Button inputs managed via Simucube (no separate Windows controller needed)
- Maximum signal quality with external stub antenna
24 Total Input Options:
- 8x Push buttons with tactile feedback
- 2x Button Guards
- 2x 7-way multifunction joysticks
- 2 x Gen5 Magnetic shifters
Build Quality:
- Precision CNC-machined housing from automotive-grade aluminum
- Black anodized and laser-engraved
- Brushed front surface
- Bead-blasted paddle surfaces
Paddles:
- Gen5 Magnetic Single Paddle Shifters
- Strong snap force
- Alternate magnets included for reduced resistance
- Long-lasting automotive-grade switches
Power Efficiency:
- Low energy consumption
- 2–3 years battery life under heavy daily use
- Uses standard 14250 Lithium battery for maximum capacity
- Easy battery swap via back-side access window
Button Labeling:
- 50 x black & white button stickers
- Labels for a wide range of common button functions
£518.35
Ex Tax: £431.96
- Model: B24
- Weight: 3.00kg
- SKU: VAR-76080030-64156EAC
- Est. delivery (bussines days): 7
